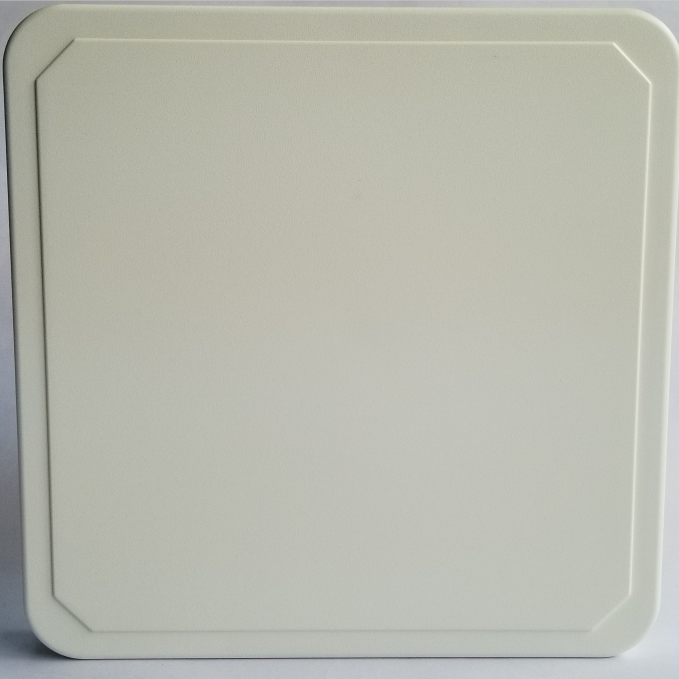

IP67 Rugged 9dbi UHF RFID Antennas


  • 9dbi High gain

  • IP67

  • Long reading distance

  • 860-960mhz

  • N-50KFD (Type N Female)

  • Linear/Circular Polarization


  • Warehouse Management

  • Garment Management

  • Personal Tracking

  • Retail Management

  • Healthcare Management

  • Fleet Management



Product Name 9dbi UHF RFID RHCP Antenna
Material Engineering Plastic ASA,Aluminums
Color Ivory-white
Frequency Range 860-868mhz or 902-920mhz
 Maximum VSWR 1.3:1
Polarization Circular Polarization
Input Impedance 50ohm
Antenna Connection N-50KFD (Type N Female)
Relative humidity 5%~95%
Enclosure Rating IP67
Working temperature  -40℃~+ 85℃
Storage Temperature -40℃~+ 85℃

Key Features

IRN900 RFID antenna features extremely low voltage standing waves (VSWR) and axial ratios. With these low ratios, the user will be able to maximize the performance of the panel antenna and improve efficiencies in the system. With an IP rating of 67, the heavy-duty radome antenna enclosure is perfect mounting directly to the walls of industrial environments such as warehouses, terminals, distribution centers, and more.

With IP67, our circular polarized rfid antenna is perfect for outdoor & indoor use.  No matter smart shelf in warehouse inventory management, or running race outdoor, our 9dbi RFID UHF antenna is perfect for your solutions.
