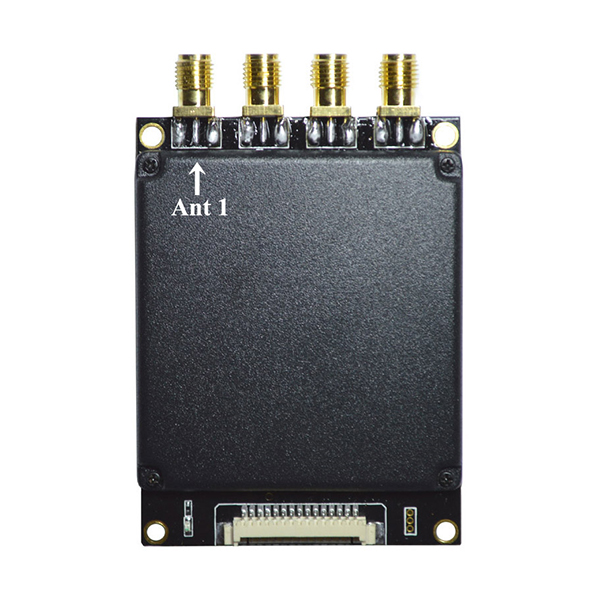

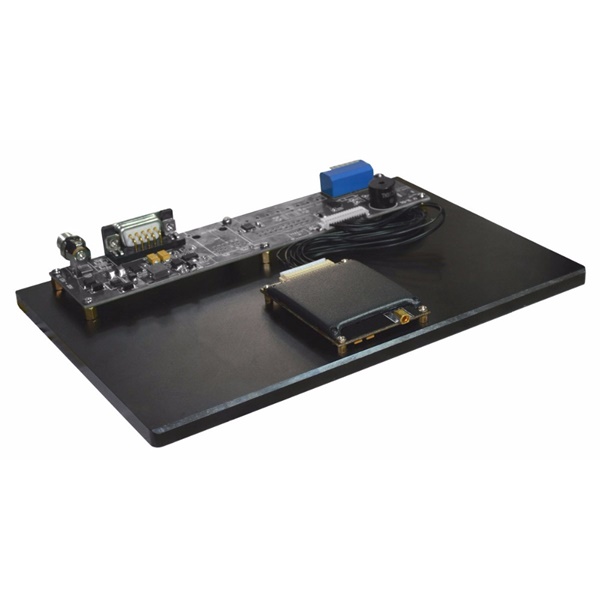

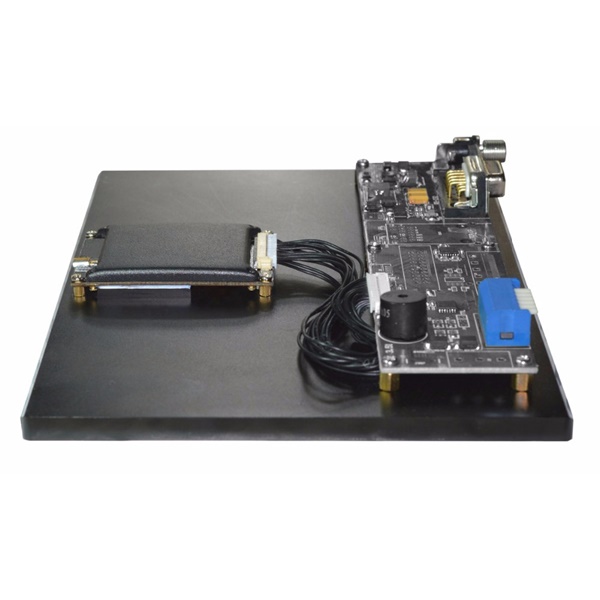

High Performance UHF RFID Reader Module
Features
Impinj R2000 Chip
Up to 700 tags/s
DRM Supported
4 External Antenna Ports
860-960MHz
Tag RSSI Supported
Applications
Warehouse Management
Garment Management
Personal Tracking
Retail Management
Healthcare Management
Fleet Management
Specifications
Parameters
|
Operating Voltage |
3.7V – 5 V |
|
Standby Mode Current |
<50mA (EN high level) |
| Sleep Mode Current | <100uA (EN low level) |
| Operating Current | 1.2A +/-10% |
| Operating Temperature | – 20 °C – + 55 °C |
| Storage Temperature | – 20 °C – + 85 °C |
| Humidity | < 95% ( + 25 °C) |
| Air Interface Protocol | EPC global UHF Class 1 Gen 2 / ISO 18000-6C/ISO 18000-6B |
| Spectrum Range | 860Mhz – 960Mhz |
| Supported Regions | US, Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208 with & without LBT regulations Mainland China, Japan, Korea, Malaysia |
| Output Power | 0 – 33dBm |
| Output Power Precision | +/- 1dB |
| Output Power Flatness | +/- 0.2dB |
| Receive Sensitivity | < -85 dBm |
| Peak Inventory Speed | > 700 tags/sec |
| Tag Buffer Size | 1000 tags @ 96 bits EPC |
| Tag RSSI | Supported |
| Antenna Detector | Supported |
| Ambient Temp Monitor | Supported |
| Working Mode | Single/DRM |
| Host Communication | TTL Uart port |
| GPIO | 2 inputs optical coupling 2 outputs optical coupling |
| Max Baud Rate | 115200 bps |
| Heat Dissipation | External cooling fin |
Key Features
| Impinj R2000 Built-in | * The UHF RFID Reader module adopts Impinj Indy R2000 chip as RF transceiver. |
| Anti-collision Algorithm | * Unique I – Search multi-tag identification algorithm providing the highest efficiency. |
| Optimized Algorithm for Tags with Small Volume | * Optimized applications for reading small volume tags with better respond time. |
| Dual CPU Architecture | * Main CPU: tag inventory; Assistant CPU: data management. |
| * Tag inventory and data transfer are parallel and simultaneous. | |
| Fast Antenna Switch Inventory (For M-2800 and M-2900) | * Every antenna’s inventory duration is configurable (Minimum duration: 30 ms). |
| * Polling from ANT 1 to the last antenna. | |
| Two Modes for Inventory | * Buffer mode and Real-time mode. |
| * Tags will be stored as buffer under buffer mode. | |
| * Tags will send data under real-time mode. This mode allows user to get tag data instantly. | |
| Hardware System Halt Detection | * Hardware CPU status surveillance. |
| * Run for 24hours X 365 days without system halt. |
| PA Health Surveillance | * PA status surveillance. |
| * Make sure PA never works under saturated state. Protect it for long term operation. | |
| 18000-6B/6C Full Compatible | * It can be switched rapidly between 18000-6B and 18000-6C tag. |
| 18000-6B Large Data Read/Write | * Read 216 bytes in one time takes less than 500ms. |
| * Write 216 bytes in one time takes less than 3.5 seconds. | |
| * It can read/write data with different lengths. | |
| Antenna Connection Detection | * Detect antenna connection status. |
| * Protective for RF receiver. | |
| * It can be canceled by command. | |
| Temperature Sensor | * Multi-point surveillance for accurate operating system temperature. |
| Power Output Correction | * Dual modules making sure output power can be finely adjusted. |
| * Dual modules working and keeping correction unless they are both damaged. | |
| Excellent Cooling Design | * Heat dissipation and large cooling surface design. |
| * Thermal coupling interfaces using high-thermal conductivity solid materials which ensure stable performance under high temperature. |
