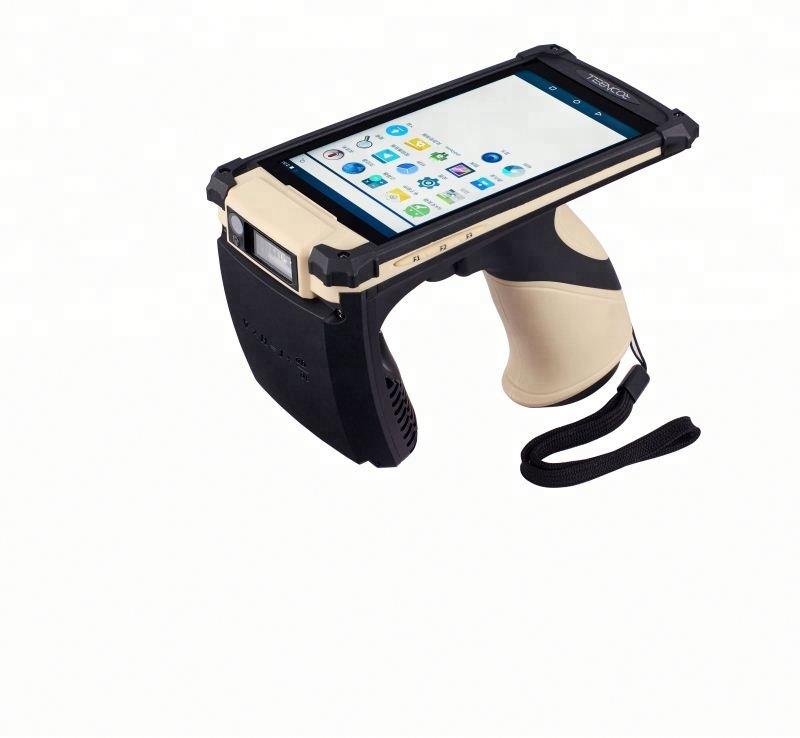

Android Handheld UHF RFID Reader
Features
Impinj R2000 Chip
500 tags/s
Android 6.0 OS
IP 64
6-7 M Reading distance
Wifi/Bluetooth/3G/4G
Applications
Warehouse Management
Garment Management
Personal Tracking
Retail Management
Healthcare Management
Fleet Management
Specifications
Parameters
| Operating System | Android 6.0 |
| CPU | Quad-core Cortex-A17 /1.8GHz |
| GPU | ARM Mali-T764 /High performance 3D engine |
| Chip | Impinj INDY R2000 |
| RAM | 2G/4G LPDDR3 |
| ROM | 32G/64G EMMC 5.0 |
| LCD | 5.0 inches /1280*720 /IPS /180° view angle |
| Power | 6000mAh chargeable li-polymer battery |
| Wireless Communication | WiFi /Bluetooth 4.0 |
| Protection Grade | IP64 |
| GPS | GPS / GLONASS |
| Engine | M-2600 module which is based on Impinj Indy R2000 Chip |
| 3G | Huawei MU 609 / Vehicle grade |
| 4G | Huawei ME 909s / Vehicle grade |
| 1D/2D Bar code Scanner | |
| Camera | 13 megapixels / automic focus / flashlight |
| Shield Material | Aluminum |
| Air Interface Protocol | EPC global UHF Class 1 Gen 2 / ISO 18000-6C/ISO 18000-6B |
| Spectrum Range | 860Mhz – 960Mhz |
| Supported Regions | US, Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208 with & without LBT regulations Mainland China, Japan, Korea, Malaysia |
| Supported Regions | 0 – 33dBm |
| Output Power Precision | +/- 1dB |
| Output Power Flatness | +/- 0.2dB |
| Receive Sensitivity | < -85 dBm |
| Peak Inventory Speed | > 500 tags/sec |
| Tag Buffer Size | 1000 tags @ 96 bits EPC |
| UHF Antenna | 3dBi circularly polarized antenna |
| Read Distance | 6-7m (Tested tag: Impinj E41b) |
Key Features
High Performance Computing Platform:
Heavy duty applications such as massive data collection, 3D real-time display can be operated smoothly.
Android 6.0:
Android 6.0 system is installed, optimized version is continuously updated.
Top Class Materials:
CNC aluminum, nylon(Bayer) and 1.1mm thickness tempered glass offer excellent strength + heat dissipation + electromagnetic shielding. The soft material around the handle offers comfort.
Industrial Grade Components:
Industrial and military grade components ensure stability and endurance in harsh environments
Ultra Long Operating Time:

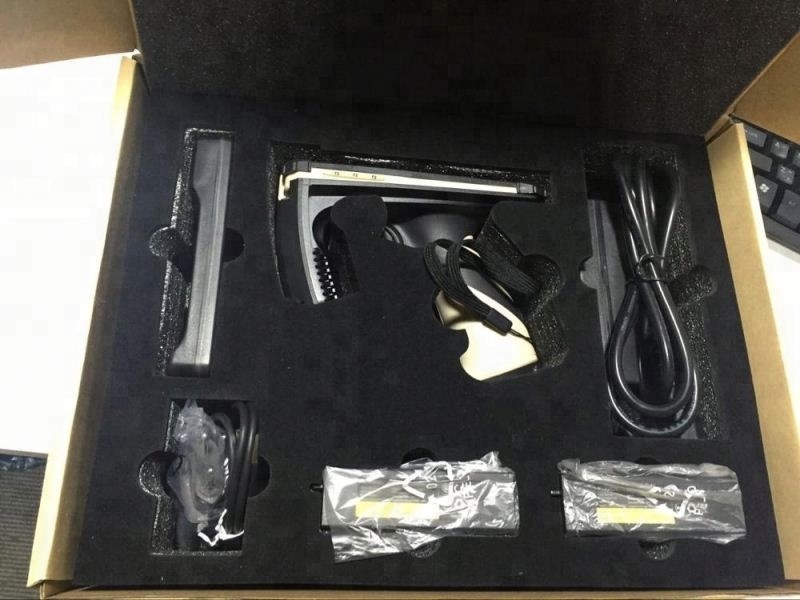

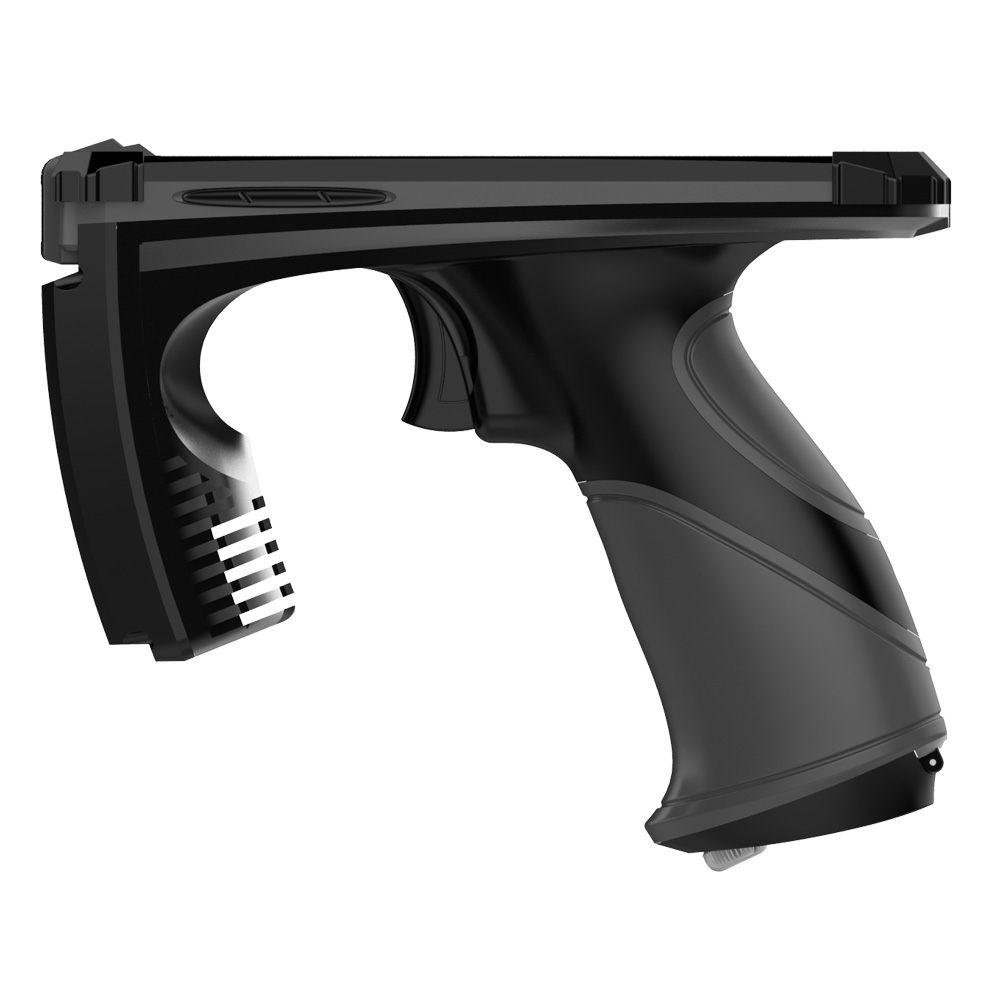

Pistol style hotswapping battery system makes backup battery more convenient to be restored, so that the operating time is unlimited. A standard product package has two 6,OOOmAh batteries included.
High End UHF RFID Engine:
The M-2600 module inside the Handheld RFID Reader which is based on Impinj Indy R2000 chip, offers the best performance and excellent multi-tag identification ability in the industry.
Outstanding Industrial Design:
The idea was inspired by orca, and each single detail has been well refined.The appearance is compact, elegant and balanced, which makes the product eye -catching and impressive.
Excellent Mechanical Protection:
The safety drop height is 2m / 656ft., IP64 protection grade can resist dusts and splashes effectively
