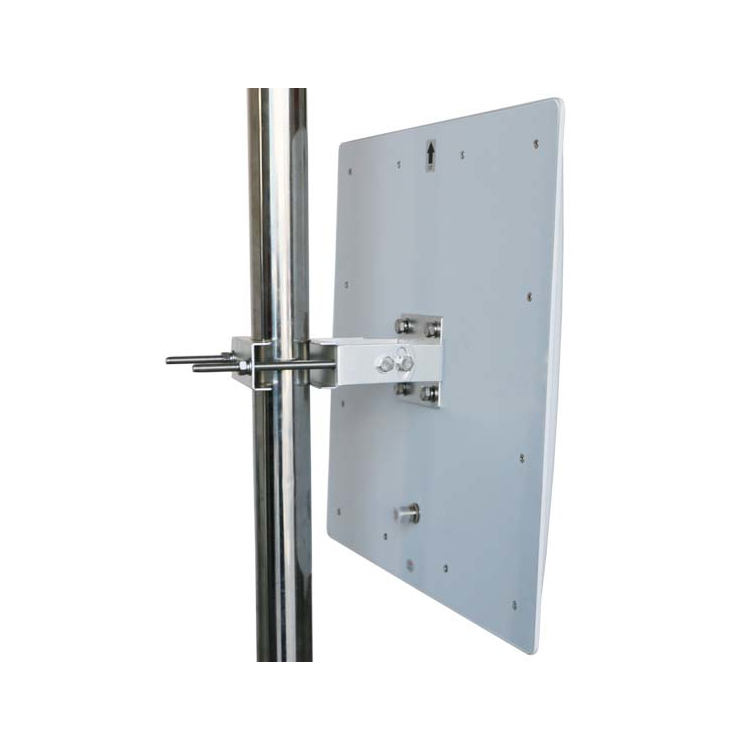

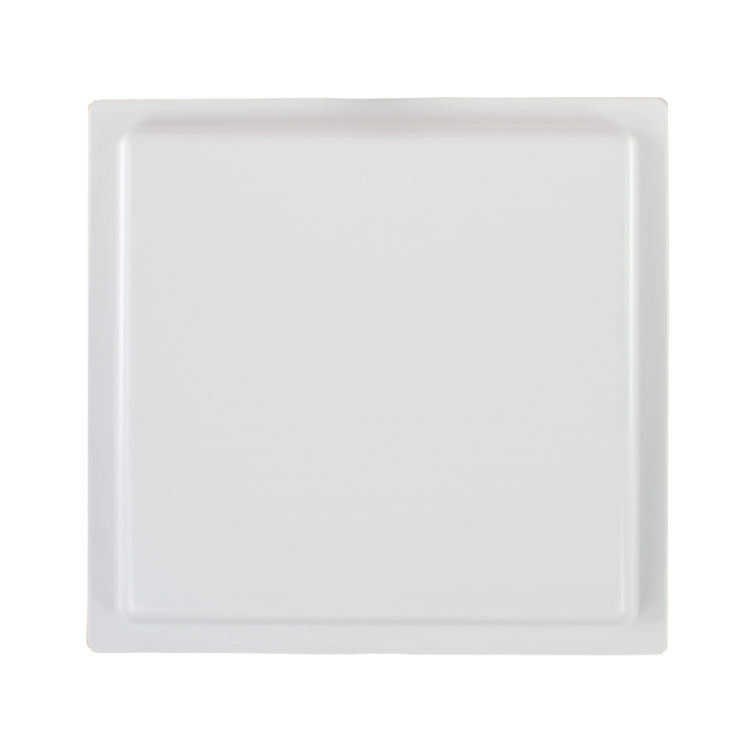

860-960MHz long range 12dbi UHF RFID Antenna
Features
12dbi High Gain
IP67 Waterproof Design
Circular polarization
ABS Material
860-960 MHz
Long Reading Distance
Applications
Warehouse Management
Garment Management
Inventory Tracking
Retail Management
Healthcare Management
Fleet Management
Specifications
Parameters
| Frequency | 860-960MHz |
| Gain | 12.5dBi |
| Beam width | Hor:45° Ver:45° |
| Polarization | Right Circular or Left Circular |
| VSWR | ≤1.3 |
| F/B Ratio | ≥25 |
| Impedance | 50Ω |
| Maximum power | 100W |
| Lightning protection | DC Ground |
| Connector | N-Female |
| Dimension | 445*445*40mm |
| Net weight | 1.95kg |
| Packing size | 60*48*11cm |
| Gross weight | 3.95kg |
| Radome material | ABS |
| Radome colour | White |
| Pole Diameter | Φ40-80mm |
| Rated wind velocity | 60m/s |
| Operating temperature | -40-70℃ |
Key Features
Long Reading Distance: High performance, reading distance can reach up to 1-15m (max 9-20m)
Fast Reading Speed: Excellent multi-tag reading function, >400 tags/s
Industrial: IP66 rugged, suitable kinds of harsh environment
Widely using: Best for long reading distance application such as warehousing, logistic, production line, yard management
